產品介紹
|

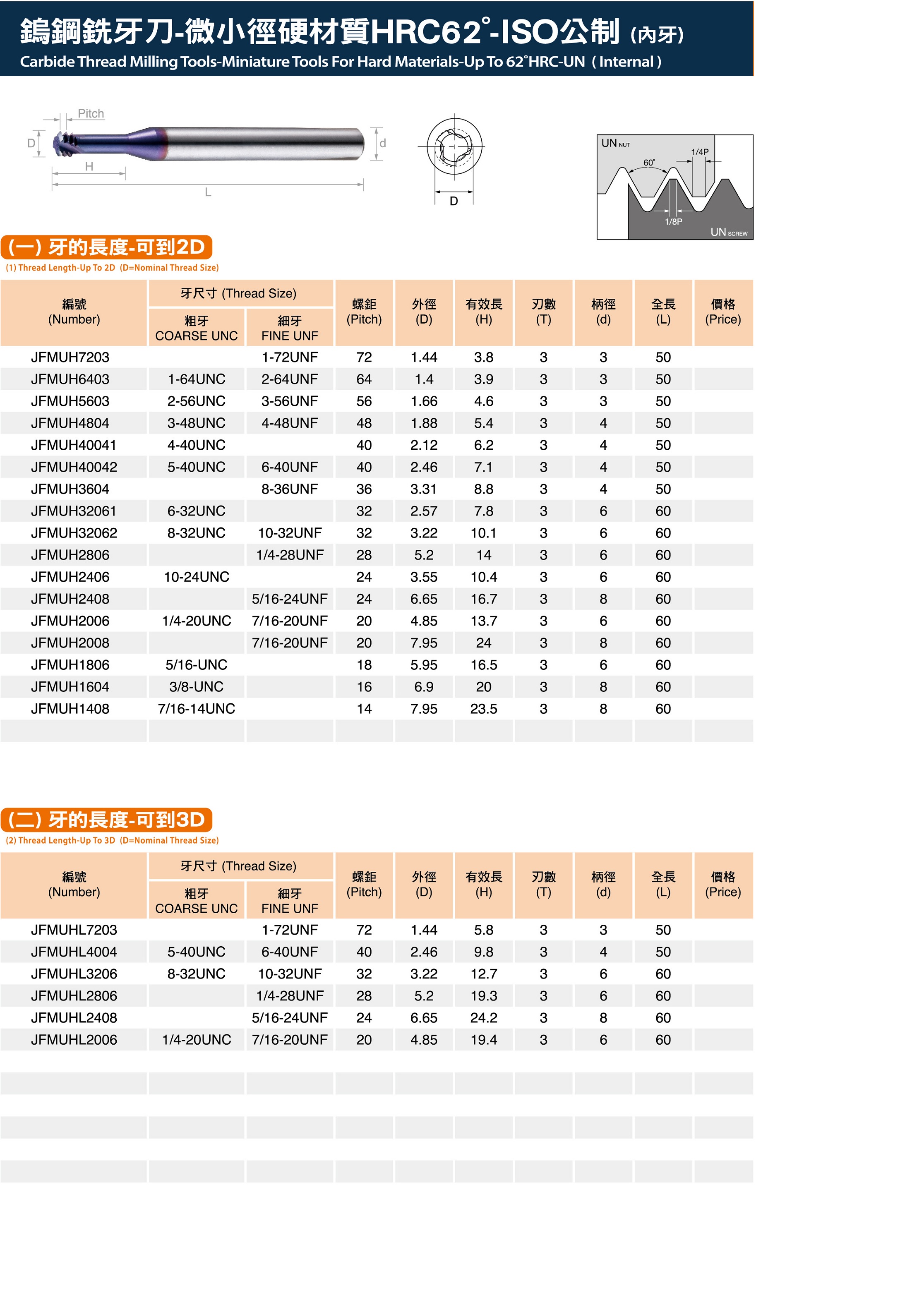

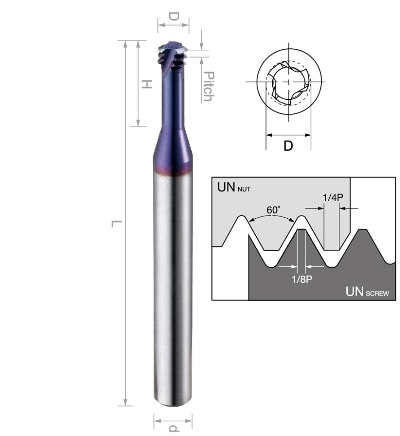

| 鎢鋼螺旋銑牙刀—UN(短刃)高硬 (A820)JFMUH/ EE |
|
| |
|
| 產品規格表 |
高硬.jpg)
|
產品編號
|
牙尺寸
|
螺鉅
(P)
|
外徑
|
有效長
(H)
|
刃數
(T)
|
柄徑
(D)
|
總長
(L)
|
建議
售價
|
|
粗牙
|
細牙
|
|
JFMUH7203
|
|
1-72UNF
|
72
|
1.44
|
3.8
|
3
|
3
|
50
|
1,500
|
|
JFMUH6403
|
1-64UNC
|
2-64UNF
|
64
|
1.4
|
3.9
|
3
|
3
|
50
|
1500
|
|
JFMUH5603
|
2-56UNC
|
3-56UNF
|
56
|
1.66
|
4.6
|
3
|
3
|
50
|
1,500
|
|
JFMUH4804
|
3-48UNC
|
4-48UNF
|
48
|
1.88
|
5.4
|
3
|
4
|
50
|
1700
|
|
JFMUH40041
|
4-40UNC
|
|
40
|
2.12
|
6.2
|
3
|
4
|
50
|
1,700
|
|
JFMUH40042
|
5-40UNC
|
6-40UNF
|
40
|
2.46
|
7.1
|
3
|
4
|
50
|
1700
|
|
JFMUH3604
|
|
8-36UNF
|
36
|
3.31
|
8.8
|
3
|
4
|
50
|
1,700
|
|
JFMUH32061
|
6-32UNC
|
|
32
|
2.57
|
7.8
|
3
|
6
|
60
|
1900
|
|
JFMUH32062
|
8-32UNC
|
10-32UNF
|
32
|
3.22
|
10.1
|
3
|
6
|
60
|
1,900
|
|
JFMUH2806
|
|
1/4-28UNF
|
28
|
5.2
|
14
|
3
|
6
|
60
|
1900
|
|
JFMUH2406
|
10-24UNC
|
|
24
|
3.55
|
10.4
|
3
|
6
|
60
|
1,900
|
|
JFMUH2408
|
|
5/16-24UNF
|
24
|
6.65
|
16.7
|
3
|
8
|
60
|
2300
|
|
JFMUH2006
|
1/4-20UNC
|
7/16-20UNF
|
20
|
4.85
|
13.7
|
3
|
6
|
60
|
1,900
|
|
JFMUH2008
|
|
7/16-20UNF
|
20
|
7.95
|
24
|
3
|
8
|
60
|
2300
|
|
JFMUH1806
|
5/16-UNC
|
|
18
|
5.95
|
16.5
|
3
|
6
|
60
|
1,900
|
|
JFMUH1604
|
3/8-UNC
|
|
16
|
6.9
|
20
|
3
|
8
|
60
|
2300
|
|
JFMUH1408
|
7/16-14UNC
|
|
14
|
7.95
|
23.5
|
3
|
8
|
60
|
2,300
|
|
|
|
|
|
|
|
|
|
|
|
|
產品編號
|
牙尺寸
|
螺鉅
(P)
|
外徑
|
有效長
(H)
|
刃數
(T)
|
柄徑
(D)
|
總長
(L)
|
建議
售價
|
|
粗牙
|
細牙
|
|
JFMUHL7203
|
|
1-72UNF
|
72
|
1.44
|
5.8
|
3
|
3
|
50
|
1,500
|
|
JFMUHL4004
|
5-40UNC
|
6-40UNF
|
40
|
2.46
|
9.8
|
3
|
4
|
50
|
1,700
|
|
JFMUHL3206
|
8-32UNC
|
10-32UNF
|
32
|
3.22
|
12.7
|
3
|
6
|
60
|
1,900
|
|
JFMUHL2806
|
|
1/4-28UNF
|
28
|
5.2
|
19.3
|
3
|
6
|
60
|
1,900
|
|
JFMUHL2408
|
|
5/16-24UNF
|
24
|
6.65
|
24.2
|
3
|
8
|
60
|
2,300
|
|
JFMUHL2006
|
1/4-20UNC
|
7/16-20UNF
|
20
|
4.85
|
19.4
|
3
|
6
|
60
|
1,900
|
|
| 產品內容 |
