產品介紹
|

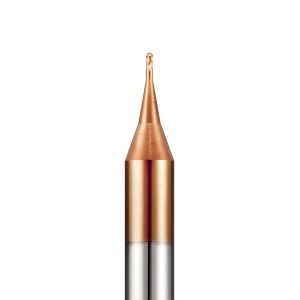

| GFB 微小徑球刀／深溝 (A211GF)CH |
 運用範圍及材質適用於精密模具產業碳鋼、合金鋼、等材料熱處理前（HRCS60）的深溝微加工 | 建議使用工法 | | 粗 加 工 | 精 加 工 | 擺線加工 | 旋螺漸降 | 3 D輪廓 | 重切削 | | | ● | | | | | | | | | | | | | 適用加工材質 | | P | M | K | H | N | S | | 鋼 | 不 鏽 鋼 | 鑄 鐵 | 熱 處 理 | 非鐵金屬 | 鈦、鎳 | | ● | ○ | ○ | ● | | ● | 建議參數 V=28 - 48 產品特性
1、高精度的刃徑精度、球頭輪廓、R弧輪廓，採用高韌性、高耐磨性塗層（塗層顏色：古桐色）
2、適用於油霧冷卻、水冷、氣冷等多種冷卻方式 |
| |
|
| 產品規格表 |
|
項次
|
產品編號
|
球半徑
(R)
|
刃數
(T)
|
刃長
(H)
|
柄徑
(d)
|
總長
(L)
|
建議
售價
|
In
Stock
|
|
1
|
GFB0022
|
0.1
|
2
|
0.4
|
4
|
50
|
400
|
●
|
|
2
|
GFB0032
|
0.15
|
2
|
0.6
|
4
|
50
|
380
|
●
|
|
3
|
GFB0042
|
0.2
|
2
|
0.8
|
4
|
50
|
360
|
●
|
|
4
|
GFB0052
|
0.25
|
2
|
1
|
4
|
50
|
340
|
●
|
|
5
|
GFB0062
|
0.3
|
2
|
1.2
|
4
|
50
|
320
|
●
|
|
6
|
GFB0072
|
0.35
|
2
|
1.4
|
4
|
50
|
300
|
●
|
|
7
|
GFB0082
|
0.4
|
2
|
1.6
|
4
|
50
|
280
|
●
|
|
8
|
GFB0092
|
0.45
|
2
|
1.8
|
4
|
50
|
280
|
●
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
項次
|
產品編號
|
球半徑
(R)
|
刃數
(T)
|
刃長
(H)
|
有效長
(M)
|
柄徑
(d)
|
總長
(L)
|
建議
售價
|
In
Stock
|
|
1
|
GFBN002012
|
0.1
|
2
|
0.2
|
1
|
4
|
50
|
440
|
●
|
|
2
|
GFBN002022
|
0.1
|
2
|
0.2
|
2
|
4
|
50
|
480
|
●
|
|
3
|
GFBN003012
|
0.15
|
2
|
0.3
|
1
|
4
|
50
|
420
|
●
|
|
4
|
GFBN003022
|
0.15
|
2
|
0.3
|
2
|
4
|
50
|
460
|
●
|
|
5
|
GFBN003032
|
0.15
|
2
|
0.3
|
3
|
4
|
50
|
500
|
●
|
|
6
|
GFBN004022
|
0.2
|
2
|
0.4
|
2
|
4
|
50
|
400
|
●
|
|
7
|
GFBN004032
|
0.2
|
2
|
0.4
|
3
|
4
|
50
|
440
|
●
|
|
8
|
GFBN004042
|
0.2
|
2
|
0.4
|
4
|
4
|
50
|
480
|
●
|
|
9
|
GFBN005022
|
0.25
|
2
|
0.5
|
2
|
4
|
50
|
380
|
●
|
|
10
|
GFBN005032
|
0.25
|
2
|
0.5
|
3
|
4
|
50
|
420
|
●
|
|
11
|
GFBN005042
|
0.25
|
2
|
0.5
|
4
|
4
|
50
|
460
|
●
|
|
12
|
GFBN005062
|
0.25
|
2
|
0.5
|
6
|
4
|
50
|
500
|
●
|
|
13
|
GFBN006022
|
0.3
|
2
|
0.6
|
2
|
4
|
50
|
360
|
●
|
|
14
|
GFBN006032
|
0.3
|
2
|
0.6
|
3
|
4
|
50
|
400
|
●
|
|
15
|
GFBN006042
|
0.3
|
2
|
0.6
|
4
|
4
|
50
|
440
|
●
|
|
16
|
GFBN006062
|
0.3
|
2
|
0.6
|
6
|
4
|
50
|
480
|
●
|
|
17
|
GFBN008022
|
0.4
|
2
|
0.8
|
2
|
4
|
50
|
320
|
●
|
|
18
|
GFBN008032
|
0.4
|
2
|
0.8
|
3
|
4
|
50
|
360
|
●
|
|
19
|
GFBN008042
|
0.4
|
2
|
0.8
|
4
|
4
|
50
|
400
|
|
|
20
|
GFBN008062
|
0.4
|
2
|
0.8
|
6
|
4
|
50
|
440
|
●
|
|
21
|
GFBN010042
|
0.5
|
2
|
1
|
4
|
4
|
50
|
400
|
●
|
|
22
|
GFBN010062
|
0.5
|
2
|
1
|
6
|
4
|
50
|
440
|
●
|
|
23
|
GFBN010082
|
0.5
|
2
|
1
|
8
|
4
|
50
|
480
|
●
|
|
24
|
GFBN010102
|
0.5
|
2
|
1
|
10
|
4
|
50
|
520
|
●
|
|
25
|
GFBN015062
|
0.75
|
2
|
1.2
|
6
|
4
|
50
|
440
|
●
|
|
26
|
GFBN015082
|
0.75
|
2
|
1.2
|
8
|
4
|
50
|
480
|
●
|
|
27
|
GFBN015102
|
0.75
|
2
|
1.2
|
10
|
4
|
50
|
520
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(A211GF)
|
|
