產品介紹
|

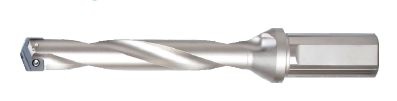

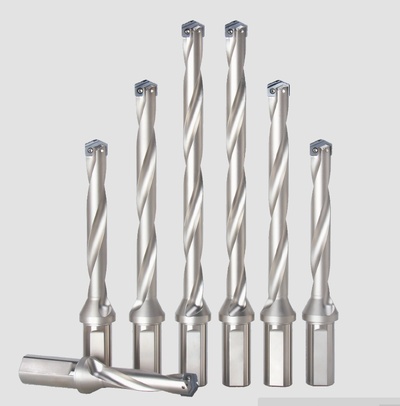

| SD 鏟鑽 |
功用 1. 鑽削深孔：鏟鑽設計適合加工較深的孔， 深徑比可達 5–8 倍甚至更高。 2. 粗加工為主：通常用於孔的初加工或粗鑽， 後續可再用擴孔刀或鉸刀做精加工。 3. 加工各類材料：適合鋼、鑄鐵、 鋁合金等多種材質。 4. 高效率切削：能快速去除材料， 提升加工效率。 特點 • 刀刃呈鏟形（spade型）：切削刃大，能快速排屑。 • 結構簡單、成本較低：與可轉位鑽頭或深孔鑽相比， 製造與維護成本更低。 • 刀片可更換：有些設計刀片可更換， 節省耗材成本。 • 剛性好：刀體粗壯， 適合穩定的直線切削。 • 需要良好排屑與冷卻：由於切削力大， 深孔加工時容易產生積屑與高溫， 因此通常需要高壓冷卻輔助。 |
| |
|
| 產品規格表 |
|

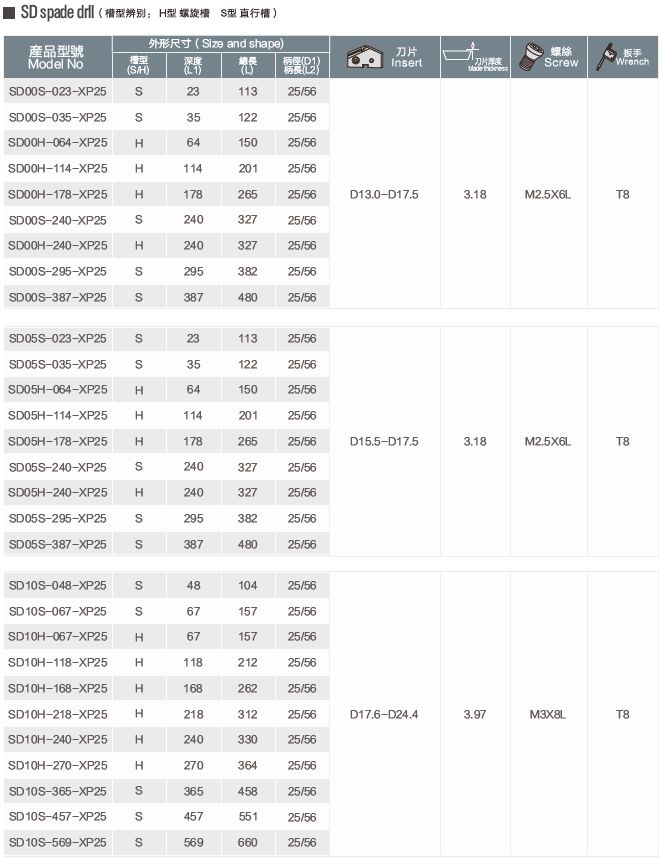

SD spade drill (槽型辨別: H型螺旋槽 S型直行槽)
|
|
產品型號
Model No
|
外形尺寸（Size and shape）
|
建議售價
Price
|
刀片
Insert
|
刀片厚度
Blade thickness
|
螺絲
Screw
|
板手
Wrench
|
|
槽型
(S/H)
|
深度
(L1)
|
總長
(L)
|
柄徑 (D1)
柄長
(L2)
|
|
SD00S-023-XP20
|
S
|
23
|
113
|
20/56
|
2184
|
D13.0
︙
D17.5
|
3.18
|
M2.5X6L
|
T8
|
|
SD00S-035-XP25
|
S
|
35
|
122
|
25/56
|
2292
|
|
SD00H-064-XP25
|
H
|
64
|
150
|
25/56
|
2730
|
|
SD00H-114-XP25
|
H
|
114
|
201
|
25/56
|
3822
|
|
SD00H-178-XP25
|
H
|
178
|
265
|
25/56
|
4914
|
|
SD00S-240-XP20
|
S
|
240
|
327
|
20/56
|
7068
|
|
SD00S-295-XP20
|
S
|
295
|
382
|
20/56
|
7200
|
|
SD00S-387-XP20
|
S
|
387
|
480
|
20/56
|
9588
|
|
SD05S-023-XP25
|
S
|
23
|
113
|
25/56
|
2730
|
D15.5
︙
D17.5
|
3.18
|
M2.5X6L
|
T8
|
|
SD05S-035-XP25
|
S
|
35
|
122
|
25/56
|
2730
|
|
SD05H-064-XP25
|
H
|
64
|
150
|
25/56
|
2730
|
|
SD05H-114-XP25
|
H
|
114
|
201
|
25/56
|
3822
|
|
SD05H-178-XP25
|
H
|
178
|
265
|
25/56
|
4914
|
|
SD05S-240-XP25
|
S
|
240
|
327
|
25/56
|
6000
|
|
SD05H-240-XP25
|
H
|
240
|
327
|
25/56
|
6000
|
|
SD05S-295-XP25
|
S
|
295
|
382
|
25/56
|
7200
|
|
SD05S-387-XP25
|
S
|
387
|
480
|
25/56
|
9588
|
|
SD10S-048-XP25
|
S
|
48
|
104
|
25/56
|
2892
|
D17.6
︙
D24.4
|
3.97
|
M3X8L
|
T8
|
|
SD10S-067-XP25
|
S
|
67
|
157
|
25/56
|
3054
|
|
SD10H-118-XP25
|
H
|
118
|
212
|
25/56
|
4146
|
|
SD10H-168-XP25
|
H
|
168
|
262
|
25/56
|
5238
|
|
SD10H-218-XP25
|
H
|
218
|
312
|
25/56
|
6000
|
|
SD10H-240-XP25
|
H
|
240
|
330
|
25/56
|
6546
|
|
SD10H-270-XP25
|
H
|
270
|
364
|
25/56
|
7200
|
|
SD10S-365-XP25
|
S
|
365
|
458
|
25/56
|
8802
|
|
SD10S-457-XP25
|
S
|
457
|
551
|
25/56
|
10320
|
|
SD10S-569-XP25
|
S
|
569
|
660
|
25/56
|
14736
|
|

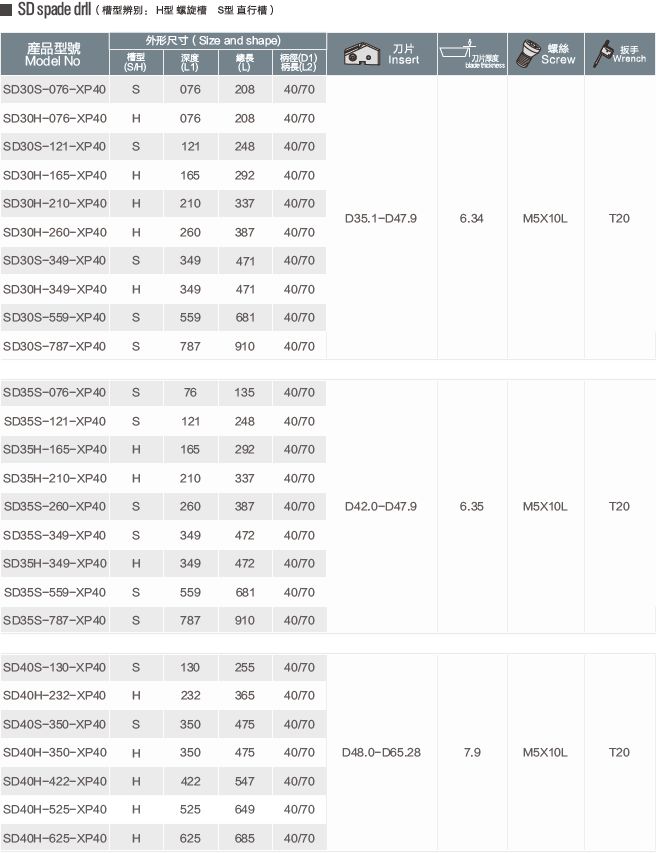

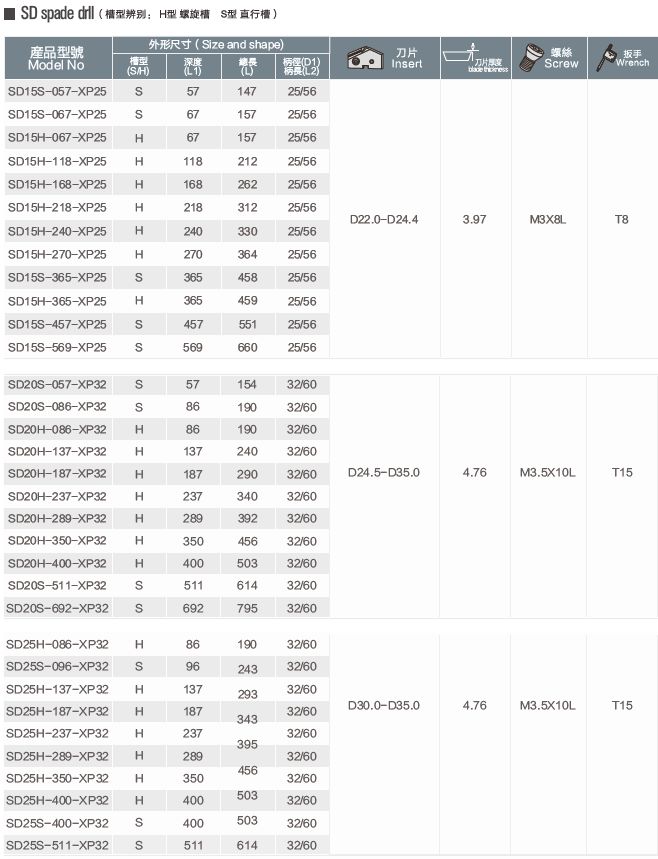

SD spade drill（槽型辨别：H型螺旋槽 S型直行槽)
|
|
產品型號Model No
|
外形尺寸（Size and shape）
|
建議售價
Price
|
刀片
Insert
|
刀片厚度
Blade thickness
|
螺絲
Screw
|
板手
Wrench
|
|
槽型
(S/H)
|
深度
(L1)
|
總長
(L)
|
柄徑 (D1)
柄長 (L2)
|
|
SD15S-057-XP25
|
S
|
57
|
147
|
25/56
|
2670
|
D22.0
︙
D24.4
|
3.97
|
M3X8L
|
T8
|
|
SD15S-067-XP25
|
S
|
67
|
157
|
25/56
|
3054
|
|
SD15H-118-XP25
|
H
|
118
|
212
|
25/56
|
4914
|
|
SD15H-168-XP25
|
H
|
168
|
262
|
25/56
|
5238
|
|
SD15H-218-XP25
|
H
|
218
|
312
|
25/56
|
6000
|
|
SD15H-240-XP25
|
H
|
240
|
330
|
25/56
|
6546
|
|
SD15H-270-XP25
|
H
|
270
|
364
|
25/56
|
7200
|
|
SD15S-365-XP25
|
S
|
365
|
458
|
25/56
|
8802
|
|
SD15S-457-XP25
|
S
|
457
|
551
|
25/56
|
10932
|
|
SD15S-569-XP25
|
S
|
569
|
660
|
25/56
|
18600
|
|
SD20S-057-XP32
|
S
|
57
|
154
|
32/60
|
2700
|
D24.5
︙
D35.0
|
4.76
|
M3.5X10L
|
T15
|
|
SD20S-086-XP32
|
S
|
86
|
190
|
32/60
|
2760
|
|
SD20H-137-XP32
|
H
|
137
|
240
|
32/60
|
5238
|
|
SD20H-187-XP32
|
H
|
187
|
290
|
32/60
|
6000
|
|
SD20H-237-XP32
|
H
|
237
|
340
|
32/60
|
7092
|
|
SD20H-289-XP32
|
H
|
289
|
392
|
32/60
|
8184
|
|
SD20H-350-XP32
|
H
|
350
|
456
|
32/60
|
10380
|
|
SD20H-400-XP32
|
H
|
400
|
503
|
32/60
|
11868
|
|
SD20S-511-XP32
|
S
|
511
|
614
|
32/60
|
14670
|
|
SD20S-692-XP32
|
S
|
692
|
795
|
32/60
|
34038
|
|
SD25S-086-XP32
|
S
|
-
|
-
|
32/60
|
2760
|
D30.0
︙
D35.0
|
4.76
|
M3.5X10L
|
T15
|
|
SD25S-096-XP32
|
S
|
-
|
-
|
32/60
|
3846
|
|
SD25H-137-XP32
|
H
|
137
|
243
|
32/60
|
6000
|
|
SD25H-187-XP32
|
H
|
187
|
293
|
32/60
|
6300
|
|
SD25H-237-XP32
|
H
|
237
|
343
|
32/60
|
7092
|
|
SD25H-289-XP32
|
H
|
289
|
395
|
32/60
|
8184
|
|
SD25H-350-XP32
|
H
|
350
|
456
|
32/60
|
10380
|
|
SD25H-400-XP32
|
H
|
400
|
503
|
32/60
|
11868
|
|
SD25S-400-XP32
|
S
|
400
|
503
|
32/60
|
11868
|
|
SD25S-511-XP32
|
S
|
511
|
614
|
32/60
|
14670
|
|
SD spade drill (槽行辨別: H型螺旋槽 S型 直行槽)
|
|
產品型號Model No
|
外形尺寸（Size and shape）
|
建議售價
Price
|
刀片
Insert
|
刀片厚度
Blade thickness
|
螺絲
Screw
|
板手
Wrench
|
|
槽型
(S/H)
|
深度
(L1)
|
總長
(L)
|
柄徑 (D1)
柄長 (L2)
|
|
SD30S-076-XP40
|
S
|
76
|
208
|
40/70
|
4002
|
D35.1
︙
D47.9
|
6.34
|
M5X10L
|
T20
|
|
SD30S-121-XP40
|
S
|
121
|
248
|
40/70
|
5460
|
|
SD30H-165-XP40
|
H
|
165
|
292
|
40/70
|
7200
|
|
SD30H-210-XP40
|
H
|
210
|
337
|
40/70
|
7638
|
|
SD30H-260-XP40
|
H
|
260
|
387
|
40/70
|
8184
|
|
SD30S-349-XP40
|
S
|
349
|
471
|
40/70
|
12000
|
|
SD30H-349-XP40
|
H
|
349
|
471
|
40/70
|
12000
|
|
SD30S-559-XP40
|
S
|
559
|
681
|
40/70
|
19296
|
|
SD30S-787-XP40
|
S
|
787
|
910
|
40/70
|
38400
|
|
SD35S-076-XP40
|
S
|
76
|
135
|
40/70
|
4002
|
D42.0
︙
D47.9
|
6.35
|
M5X10L
|
T20
|
|
SD35S-121-XP40
|
S
|
121
|
248
|
40/70
|
5460
|
|
SD35H-165-XP40
|
H
|
165
|
292
|
40/70
|
7200
|
|
SD35H-210-XP40
|
H
|
210
|
337
|
40/70
|
7638
|
|
SD35S-260-XP40
|
S
|
260
|
387
|
40/70
|
8184
|
|
SD35S-349-XP40
|
S
|
349
|
472
|
40/70
|
12600
|
|
SD35H-349-XP40
|
H
|
349
|
472
|
40/70
|
12600
|
|
SD35S-559-XP40
|
S
|
559
|
681
|
40/70
|
19296
|
|
SD35S-787-XP40
|
S
|
787
|
910
|
40/70
|
38400
|
|
SD40S-130-XP40
|
S
|
130
|
255
|
40/70
|
6120
|
D48.0
︙
D65.28
|
7.9
|
M5X10L
|
T20
|
|
SD40H-232-XP40
|
H
|
232
|
365
|
40/70
|
7158
|
|
SD40S-350-XP40
|
S
|
350
|
475
|
40/70
|
12000
|
|
SD40S-422-XP40
|
H
|
422
|
547
|
40/70
|
16728
|
|
SD40H-525-XP40
|
H
|
525
|
649
|
40/70
|
23202
|
|
SD40H-625-XP40
|
H
|
625
|
685
|
40/70
|
30498
|
|

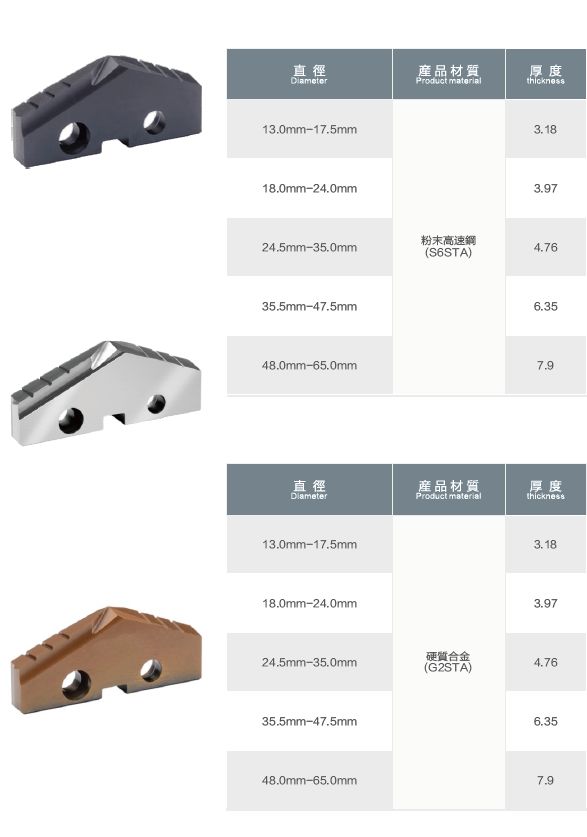

直徑
Diameter
|
產品材質
Product material
|
厚度
Thickness
|
建議售價
Price
|
|
13.0mm - 17.5mm
|
粉末高速鋼
(S6STA)
|
3.18
|
來電詢價
|
|
18.0mm - 24.0mm
|
3.97
|
|
24.5mm - 35.0mm
|
4.76
|
|
35.5mm - 47.5mm
|
6.35
|
|
48.0mm - 65.0mm
|
7.9
|
|
直徑
Diameter
|
產品材質
Product material
|
厚度
Thickness
|
建議售價
Price
|
|
13.0mm - 17.5mm
|
硬質合金
(G2STA)
|
3.18
|
來電詢價
|
|
18.0mm - 24.0mm
|
3.97
|
|
24.5mm - 35.0mm
|
4.76
|
|
35.5mm - 47.5mm
|
6.35
|
|
48.0mm - 65.0mm
|
7.9
|
|
